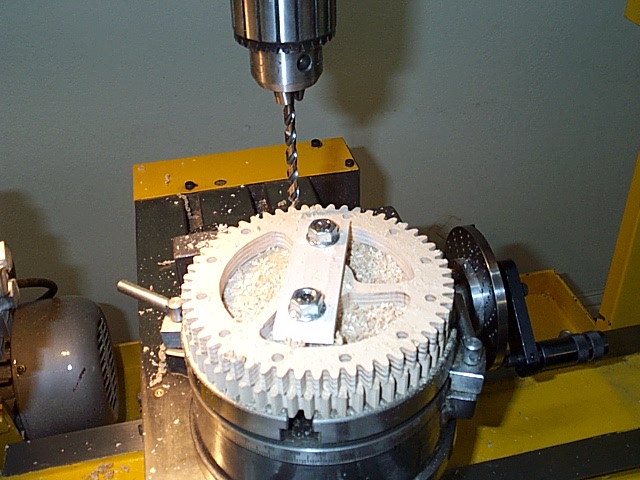

The rotary table is used to index the equally spaced holes for the 1/4"
brass escape pins.
The gear shown underneath the escape gear is a waste backing material left over from cutting the teeth on the escape gear. |
|
|
